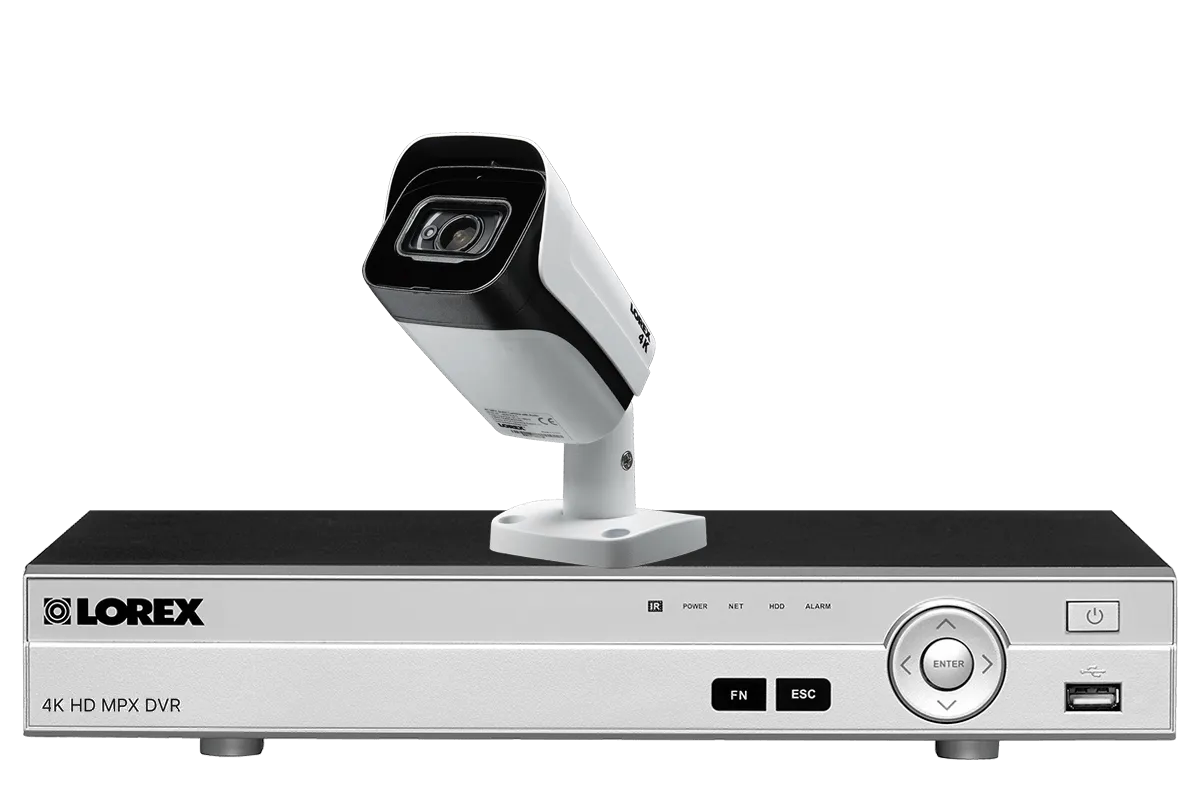

Start monitoring your property in 4K Ultra HD resolution with this 4K MPX starter pack. This system is intended to give you the freedom to create your own system, with the cameras you want. We will start you off with our powerful 8-channel DV900 DVR and one 4K Ultra HD (8MP) bullet security camera, then it's up to you. Feel free to choose any other cameras from our MPX or Wireless product lines, or add a PoE switch to open up the possibility of adding up to 4 IP cameras, including our renowned 4K Nocturnal Series. So mix and match our technologies as much as you like to compose your perfect security camera system.

MPXKIT-4K

SPECIFICATIONS

8

CHANNELS

4K DVR can support up to 8 cameras

1

CAMERA

1 Ultra HD 8MP security camera

150^FT

NIGHT VISION

Maximum night vision

1^TB

HARD DRIVE

Maximum capacity 1 × 8TB hard drive

Pick Your Cameras

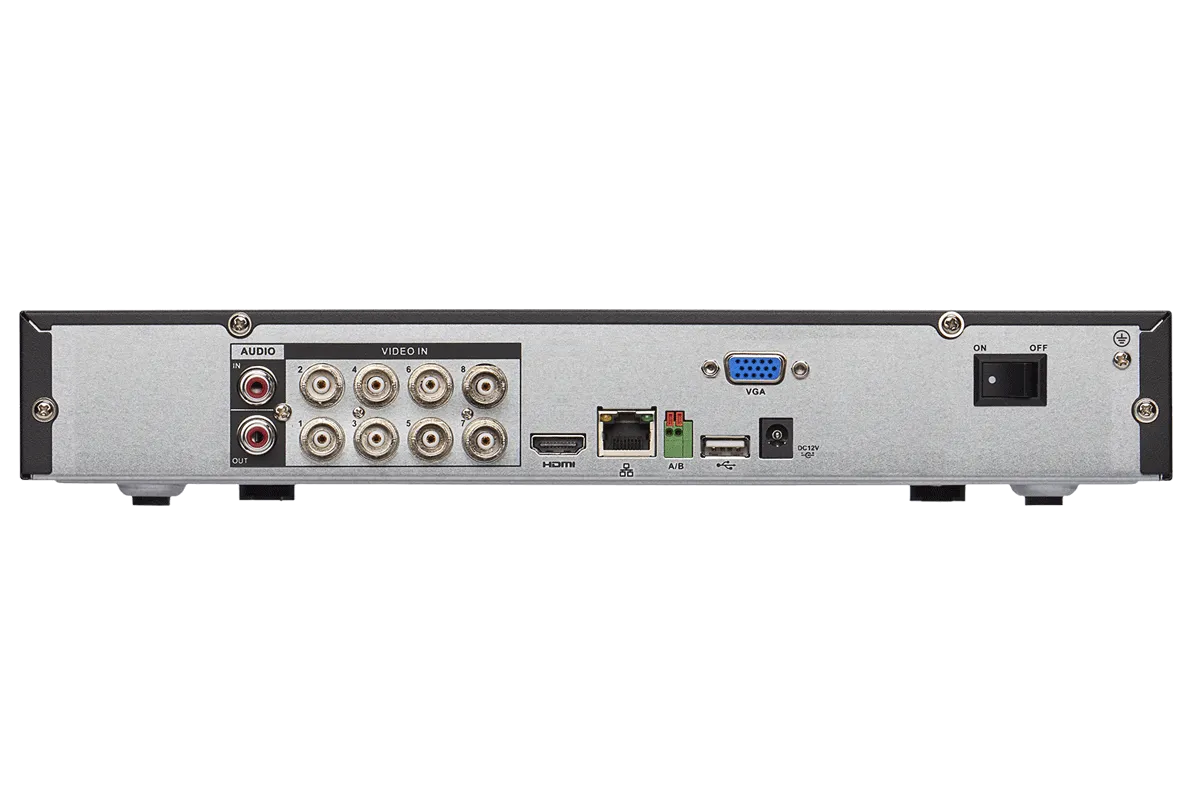

The DV900 Series DVR can be classfied as a Hybrid DVR. This is because it is compatible with MPX, Wireless, and IP security cameras. To connect MPX cameras, simply run the cameras Siamese BNC cable straight to the camera. Wireless cameras can also be easily added to this DVR by connecting the wireless camera's receiver to the BNC ports on the DVR. IP cameras, on the other hand, are a little more complicated.

Please see the diagrams below to learn how to add IP cameras to your MPX DVR.

How To Connect IP Cameras With a PoE Switch

How To Connect IP Cameras Without a PoE Switch

One more step

Follow the steps below to enable IP cameras and add them over the network:

• Connect the IP cameras to the same LAN as the system.
• Power the IP cameras via a PoE switch or power adapter.
• Enable additional IP camera channels in the system through the DVR menu.
• Right-click and select Main Menu.

• Log in using the admin account
• Click on the settings wheel - then select Cable Type
• Click the Add IP Cam button to add the additional IP camera channels.
• Wait for the system to restart

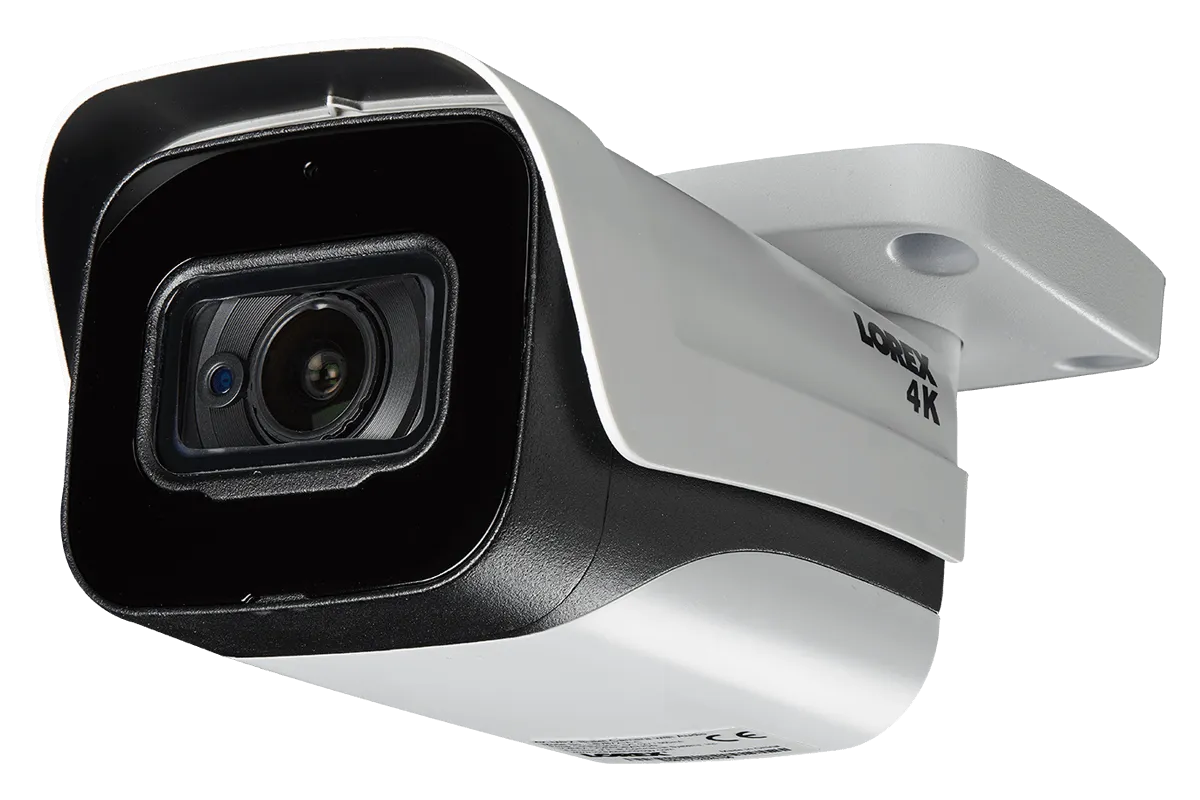

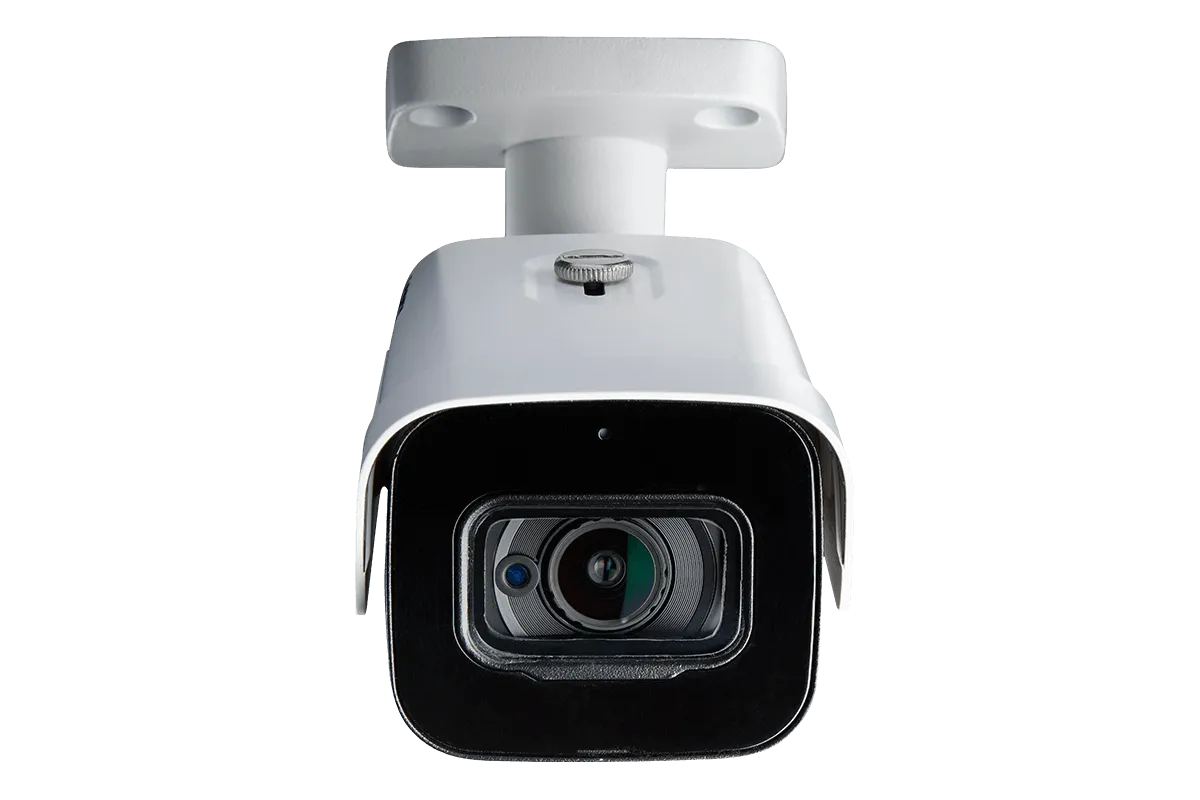

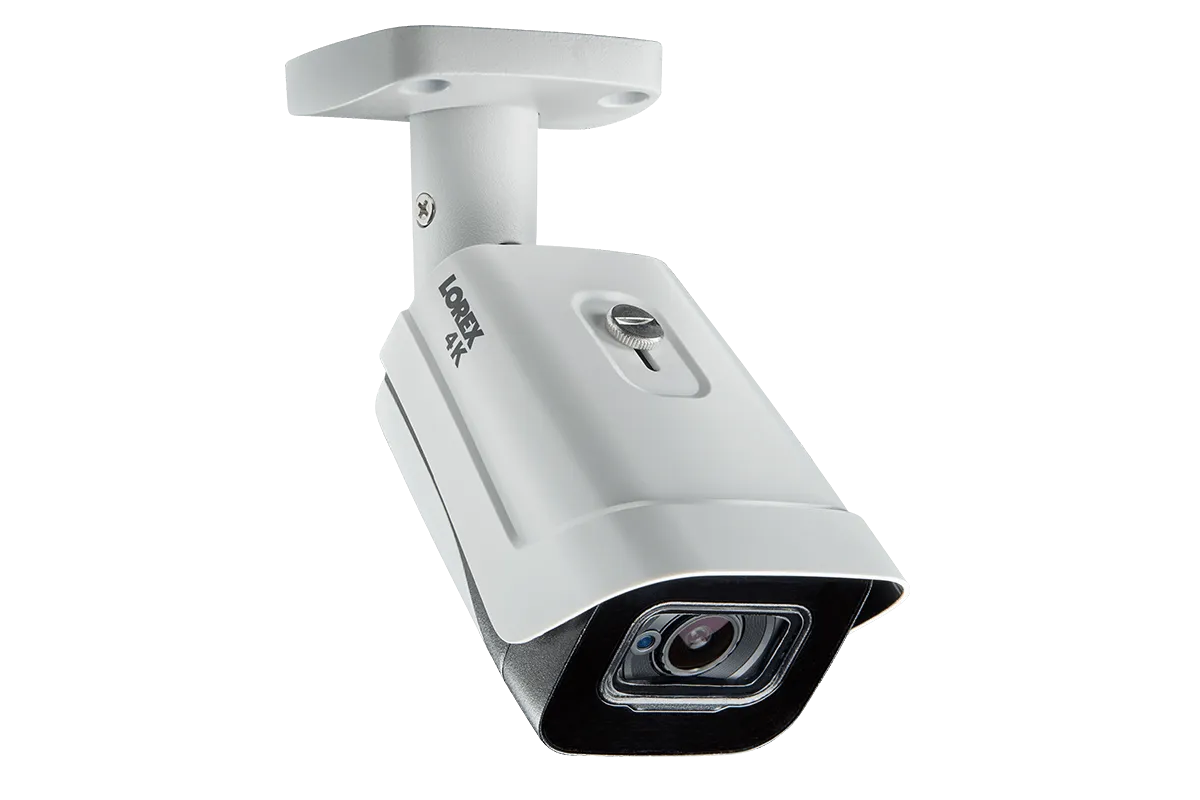

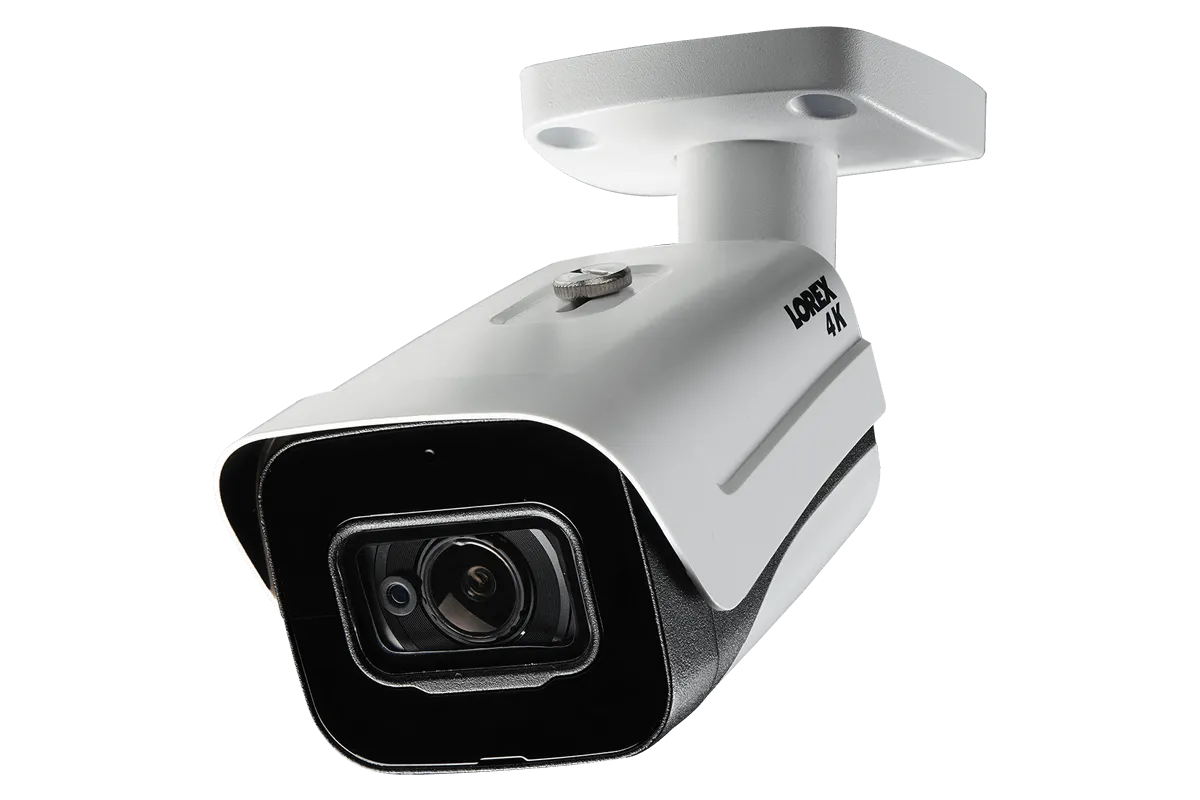

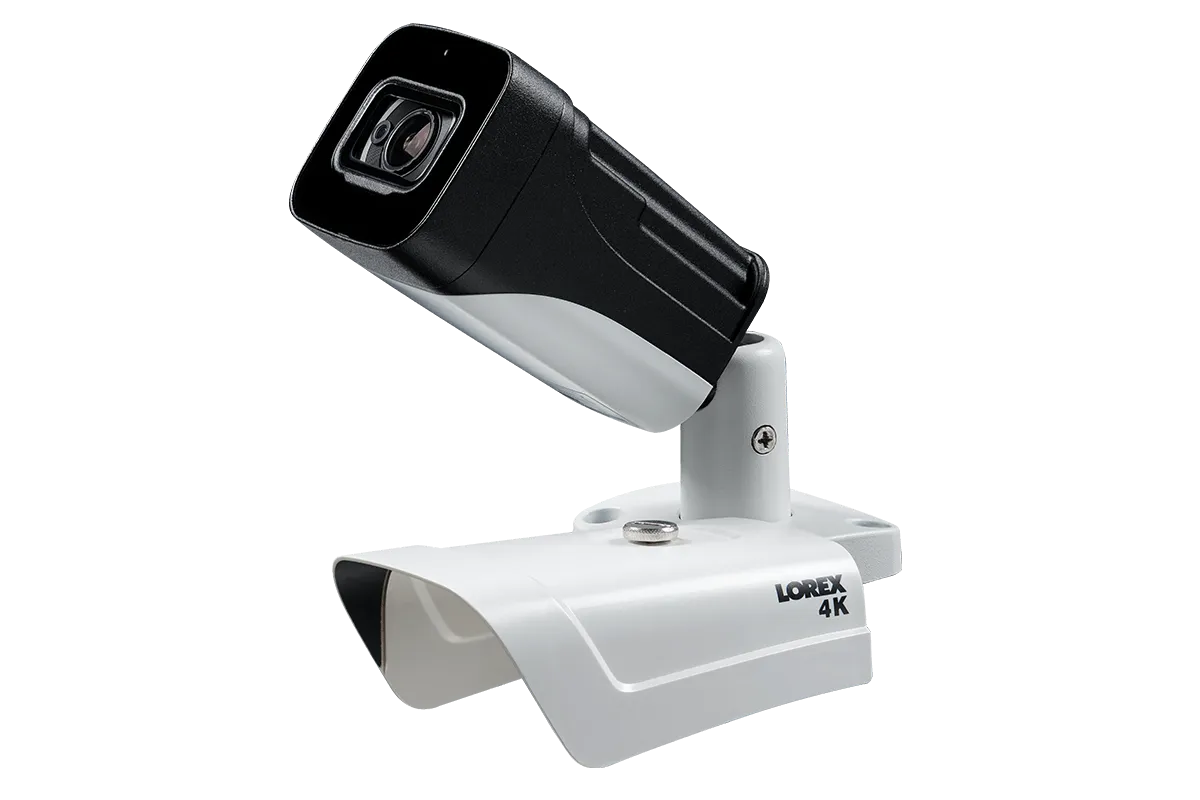

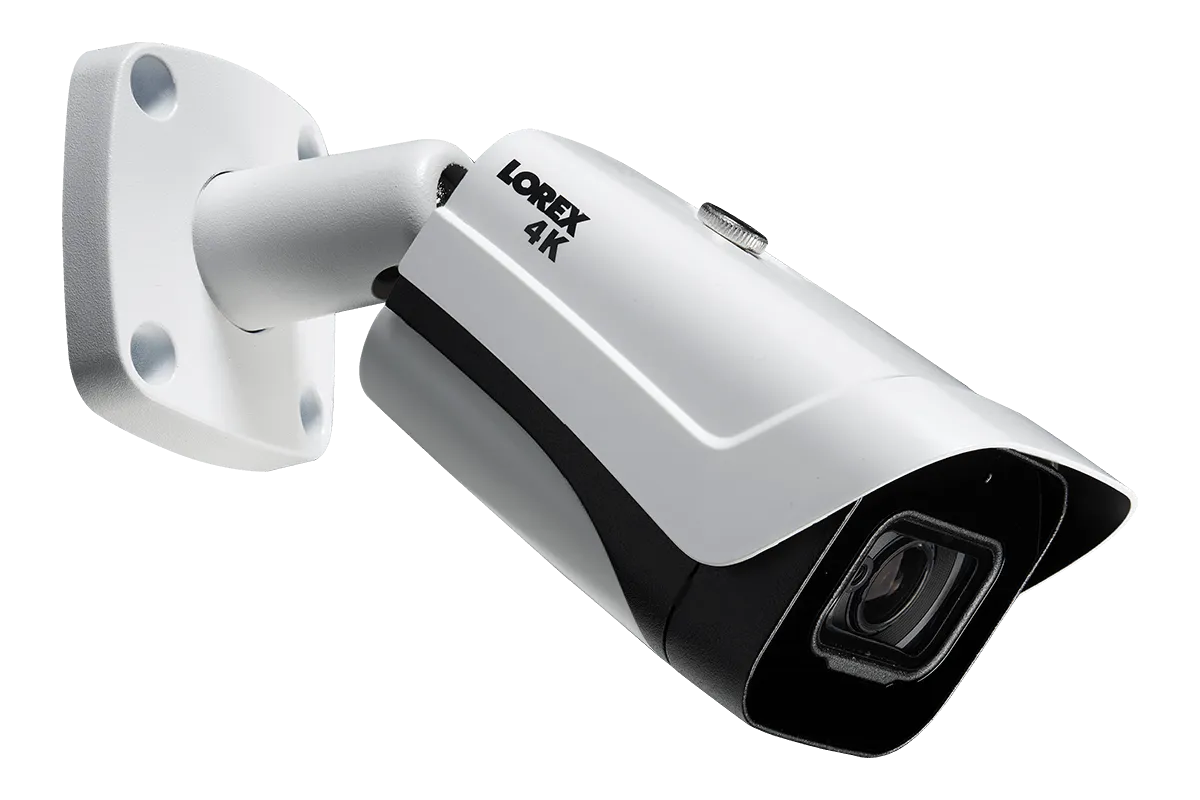

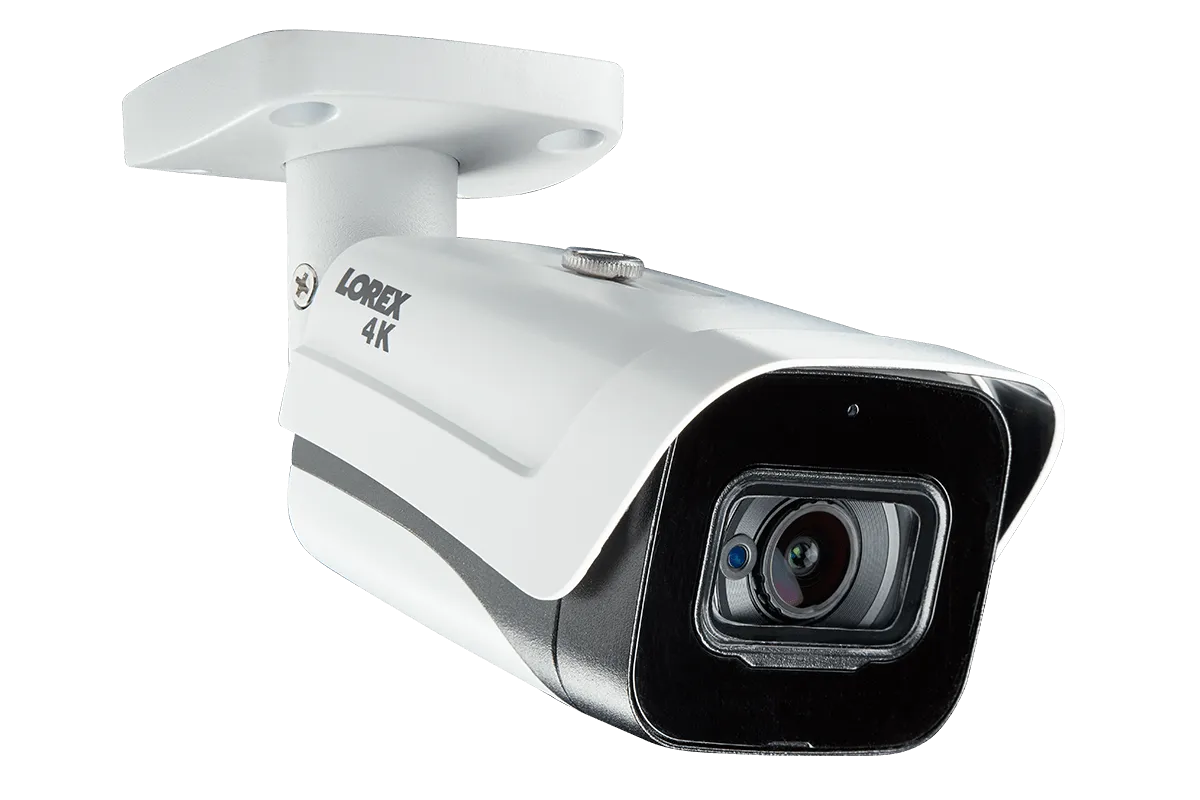

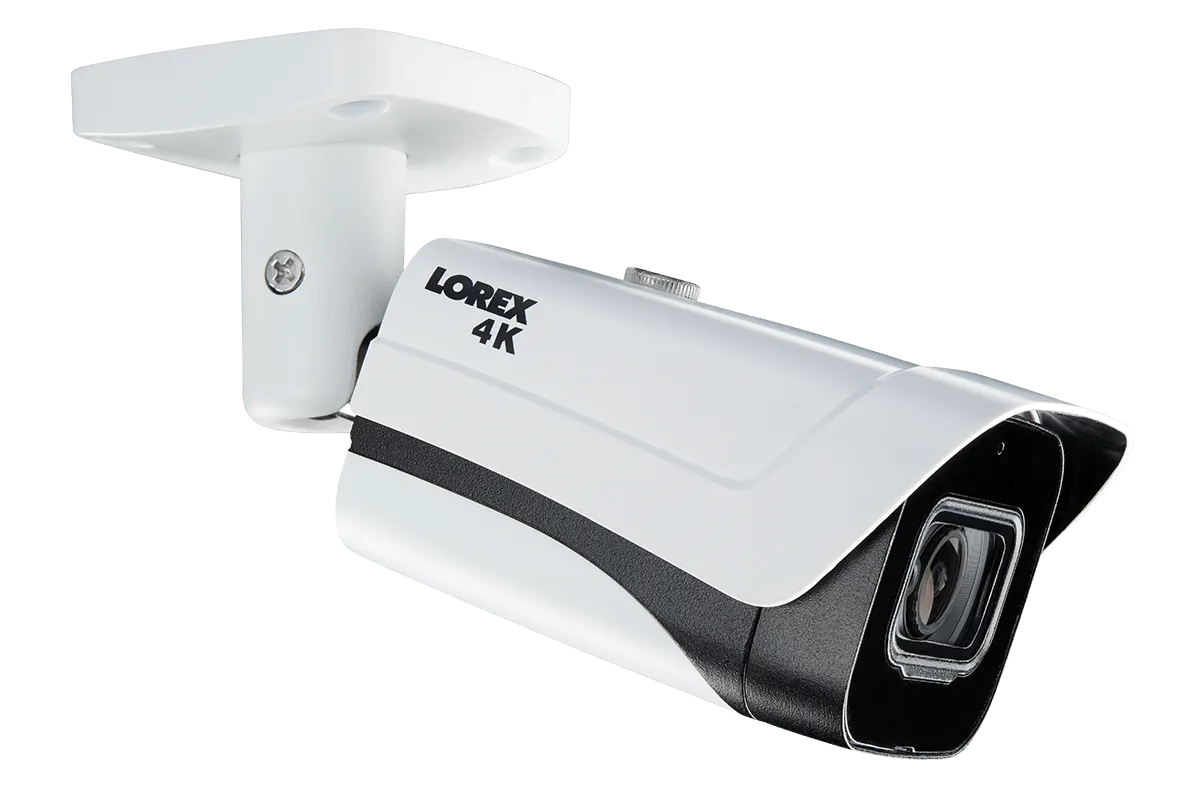

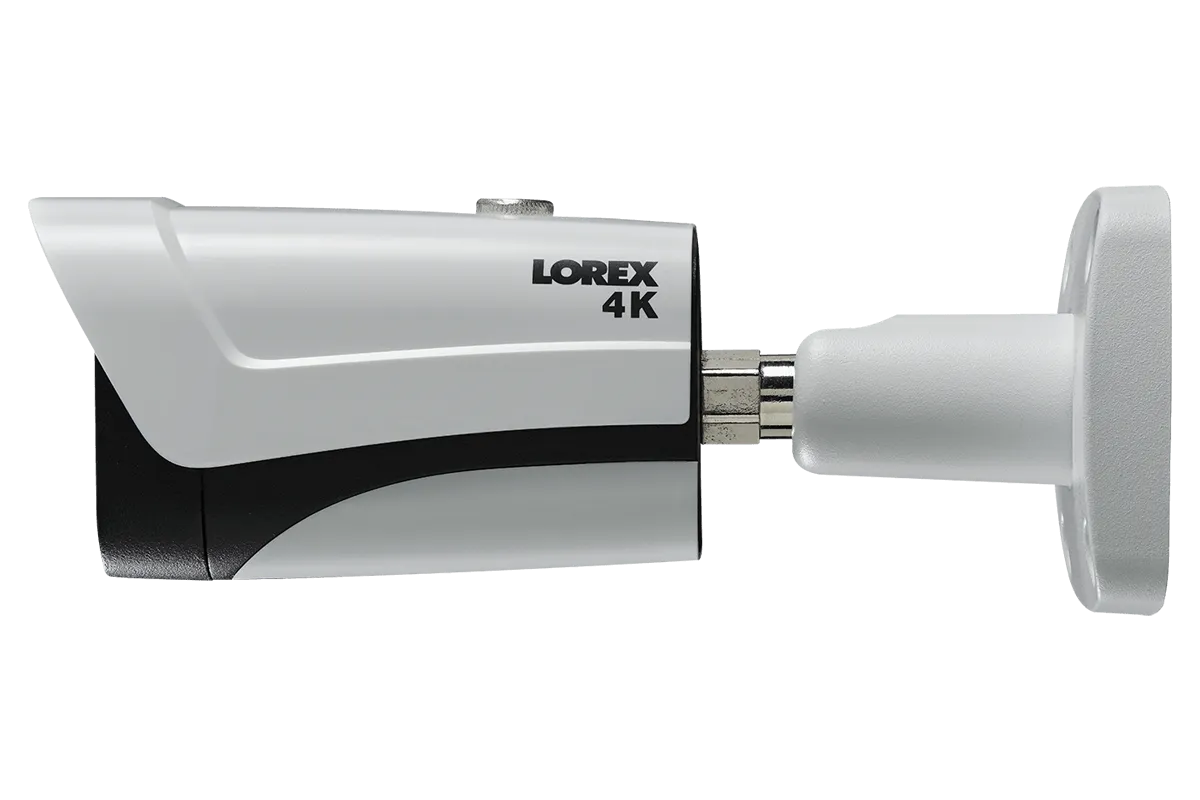

LBV8721AB Camera Features

Ultra HD security camera

The main reason to purchase a security camera is to capture useful evidence should an incident ever occur on your property. A 4K camera will do just that. 4K security cameras are capable of recording a 4K pixel resolution of 3840 × 2160 - that's 4× the amount of pixels of 1080p resolution. A foremost benefit of this higher resolution is that it allows for greater digital zooms while reviewing video. This means that details in the distance of the video will remain visible for longer as the digital zoom is applied.

Resolution	Frames Per Second (FPS) Per Channel	Pixels Per Frame (PPF)
5MP \| Super HD 2K	@15fps	2592 x 1944 \| (5,038,848 pixels)
8MP \| Ultra HD 4K	@7fps	3840
