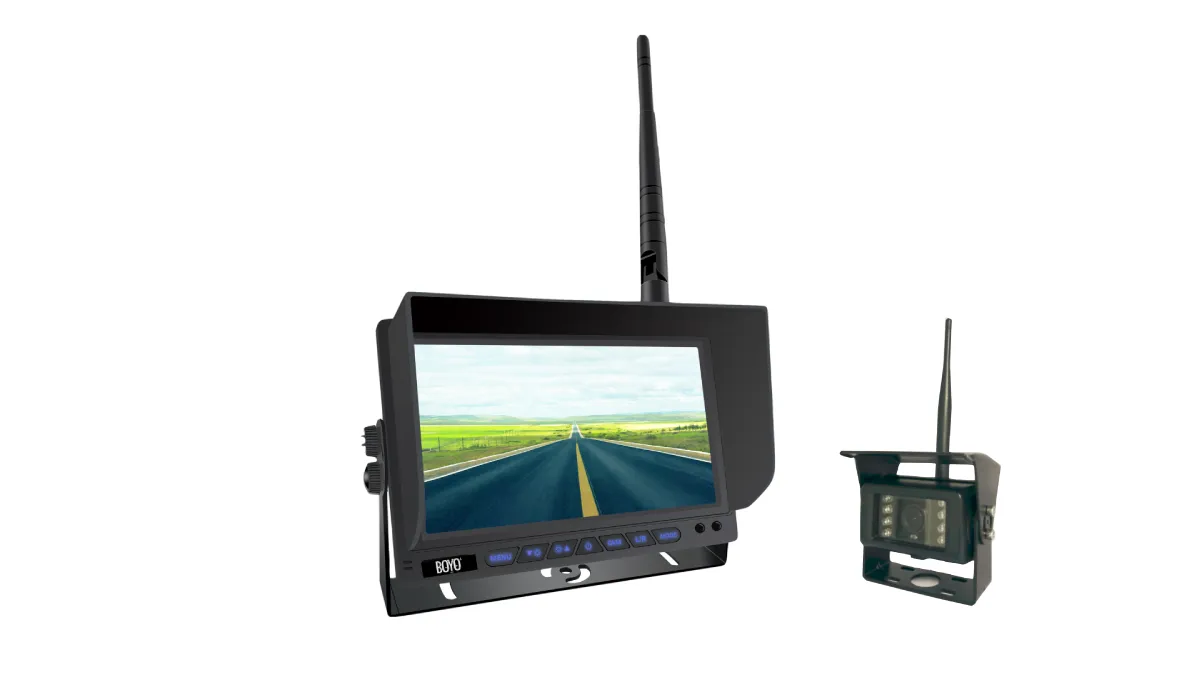

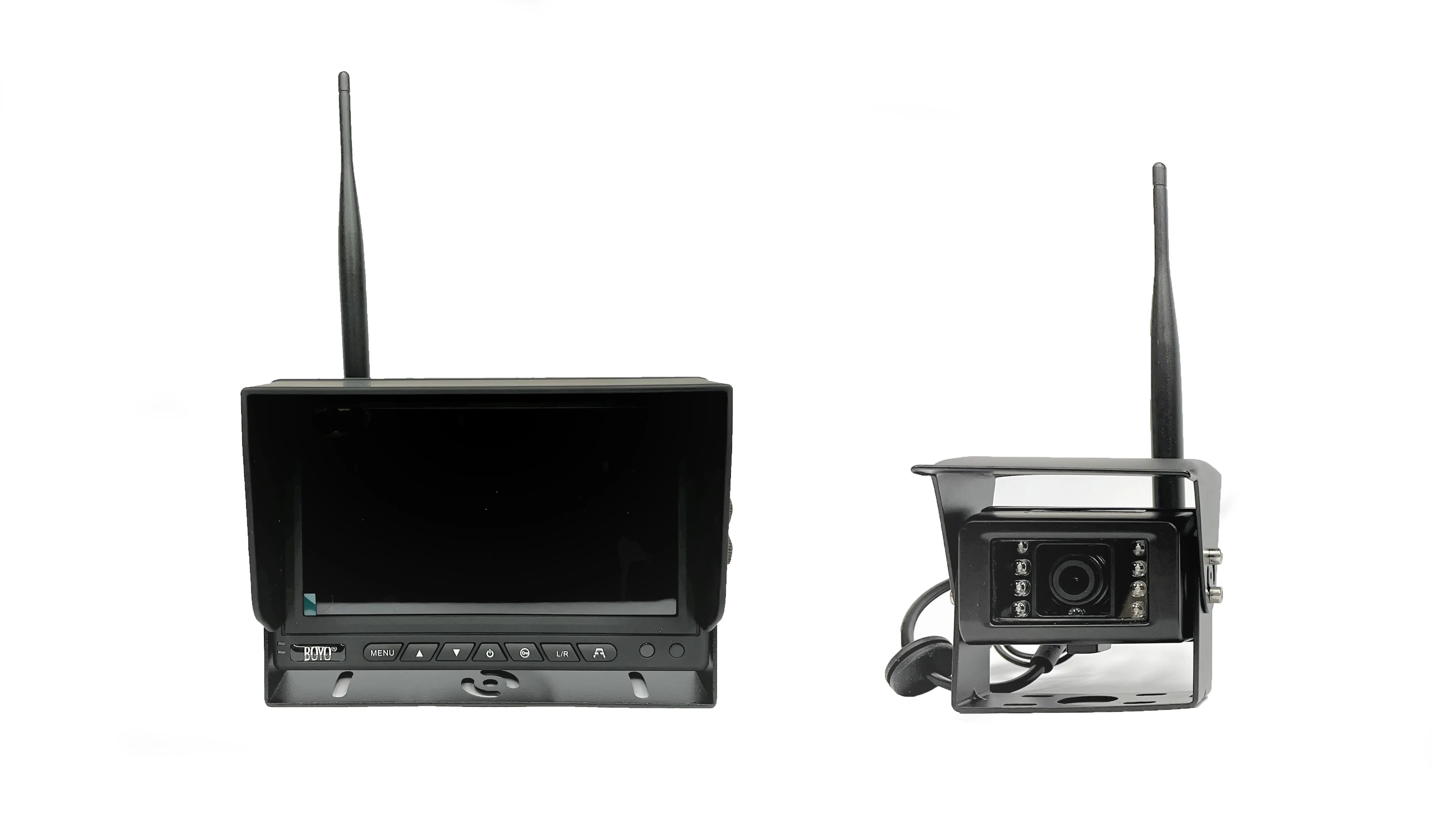

BOYO VTC701AHD - Wireless Vehicle AHD Backup Camera System with 7” Monitor and Backup Camera for Car, Truck, SUV and Van (Installation Friendly Design)
- WIRELESS AHD BACKUP CAMERA SYSTEM – Package includes a high-definition 7-inch monitor with a rear-view camera for an all-in-one solution. Works with all 9V and 36V vehicles.
- CAMERA – Universal wireless backup camera with integrated mounting bracket. Mounts to any flat surface. CMOS image sensor with 1920 (H) x 1080 (V) resolution and a 110° wide viewing angle (H). Weather-proof housing with IP68 waterproof rating.
- MONITOR – 7" widescreen HD LCD monitor with 1024 (H) x 600 (V) resolution. The monitor includes a U-shaped bracket for dash mounting and transmits a 2.4GHz digital wireless signal.
- QUICK AND EASY INSTALLATION – BOYO provides detailed step-by-step instructions as well as installation-friendly “quick connectors” to make adding your new camera and monitor as easy as possible.
- PACKAGE INCLUDES – (1) monitor, (1) camera, (1) U-shape monitor bracket

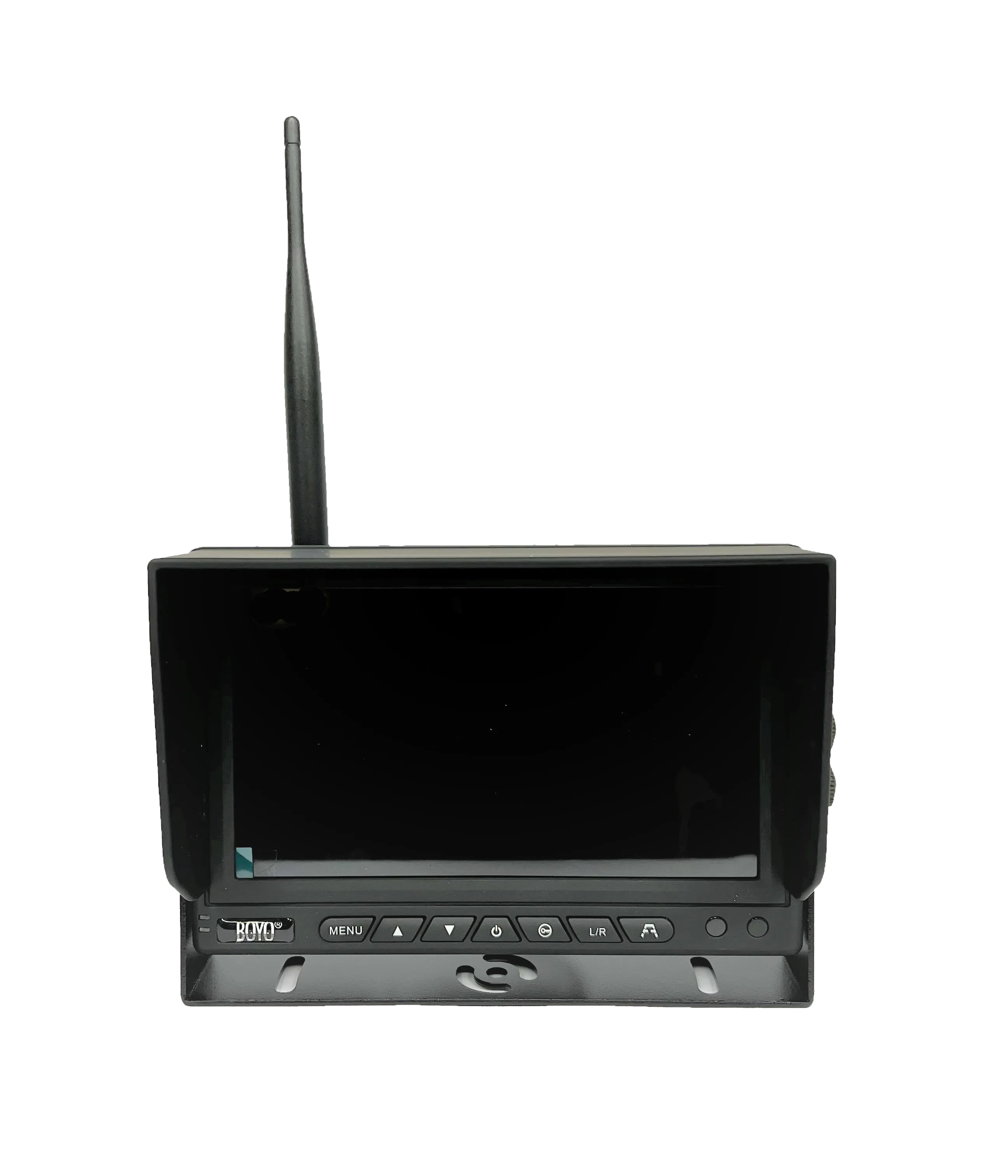

MONITOR FEATURES:
• IPS, TFT, LCD Panel, 1080p HD Quality
• Panel: 7 inch IPS TFT LCD
• Resolution: 1024 (H) x 600 (V)
• Display format: 16:9
• NTSC/PAL compatible
• Built-In Speaker
• Parking lines on/off (Selectable)
• Reverse / Non-Reverse Image (Selectable)
• 2.4GHz Digital Wireless Signal
• Wireless Transmit Range at about 1000 feet
• Working temperature: -4°F ~ 158°F
• Working Voltage Range: 9VDC ~ 36VDC
• 1 Channel Video, 1 Channel Audio
• Power the monitor through a cigarette plug

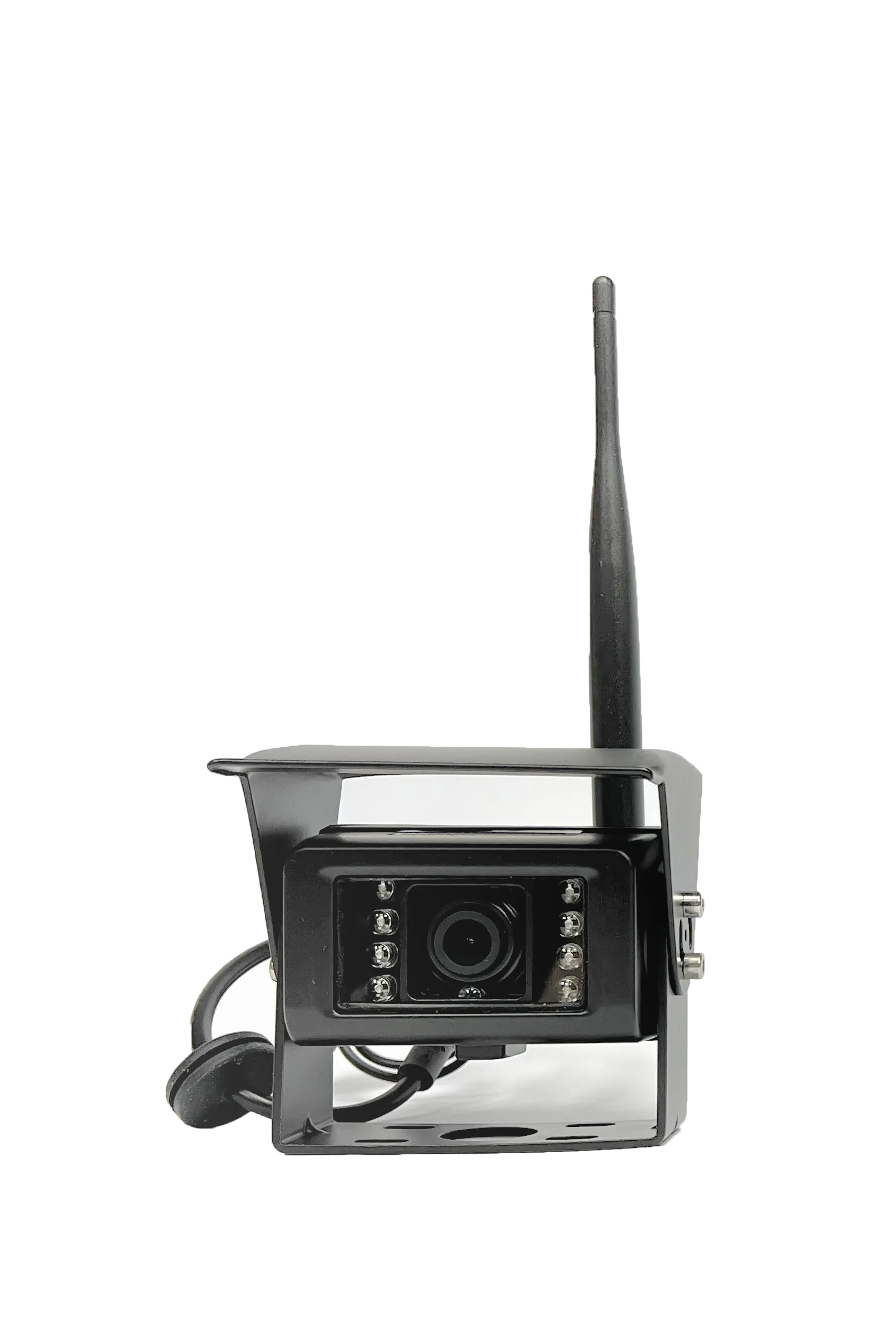

CAMERA FEATURES:
• Image Sensor: 1/3” CMOS sensor
• Effective Pixels: 1920 (H) x 1080 (V)
• Waterproof Rating: IP68
• Viewing Angle: 110 degree (H)
• Auto White Balance
• Built-in Microphone
• Built-in Heater function
• IR Night Vision Visible Distance: about 12feet
• Reverse / Non-Reverse Image (Selectable)
• 2.4GHz Digital Wireless Signal
• Wireless Transmit Range at about 1000 feet
• Working temperature: -4°F ~ 158°F
• Working Voltage Range: 9VDC ~ 36VDC
• No high-speed dropouts
• NTSC or PAL compatible (Auto Switch)
